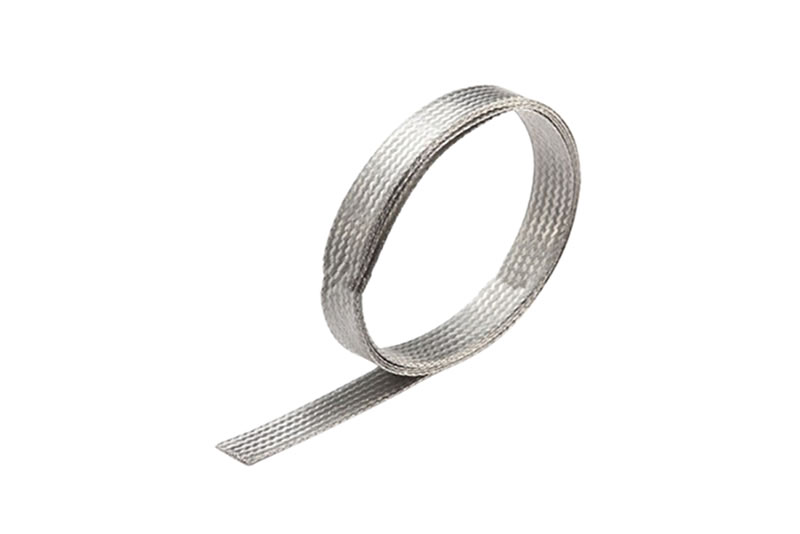

PEA-EB
Flat tinned copper braid suitable for earth connection
PEA-EB electrical grounding braid is tinned copper wires woven grounding braid in a flat. For cast resin, heat-shrink and cold-shrink accessories, to provide a fault current path across shielded cable joints.
PEA-EB electrical grounding braid is tinned copper wires woven grounding braid in a flat. For cast resin, heat-shrink and cold-shrink accessories, to provide a fault current path across shielded cable joints.
Features:
- Tinned copper wires
- Stable at elevated temperatures
- Easy conformity to irregular surfaces
- Compatible with high-voltage jointing and termination materials
- Usable for indoor and outdoor applications
- Can be easily soldered to high-voltage cable shields
- Copper conent > 99.95%
Dimensions:
|
Prolink Part. No |
Cross Section/mm2 |
Diameter if wire/mm |
Length/m |
|
EB-7 |
7 |
0.15 |
100 |
|
EB-10 |
10 |
0.15 |
100 |
|
EB-16 |
16 |
0.15 |
100 |
|
EB-20 |
20 |
0.15 |
100 |
|
EB-25 |
25 |
0.15 |
100 |
|
EB-35 |
35 |
0.15 |
100 |
|
EB-50 |
50 |
0.15 |
100 |
|
Remark: Earth Braid with moisture blocker or lug are available upon request |
|||
