GT125

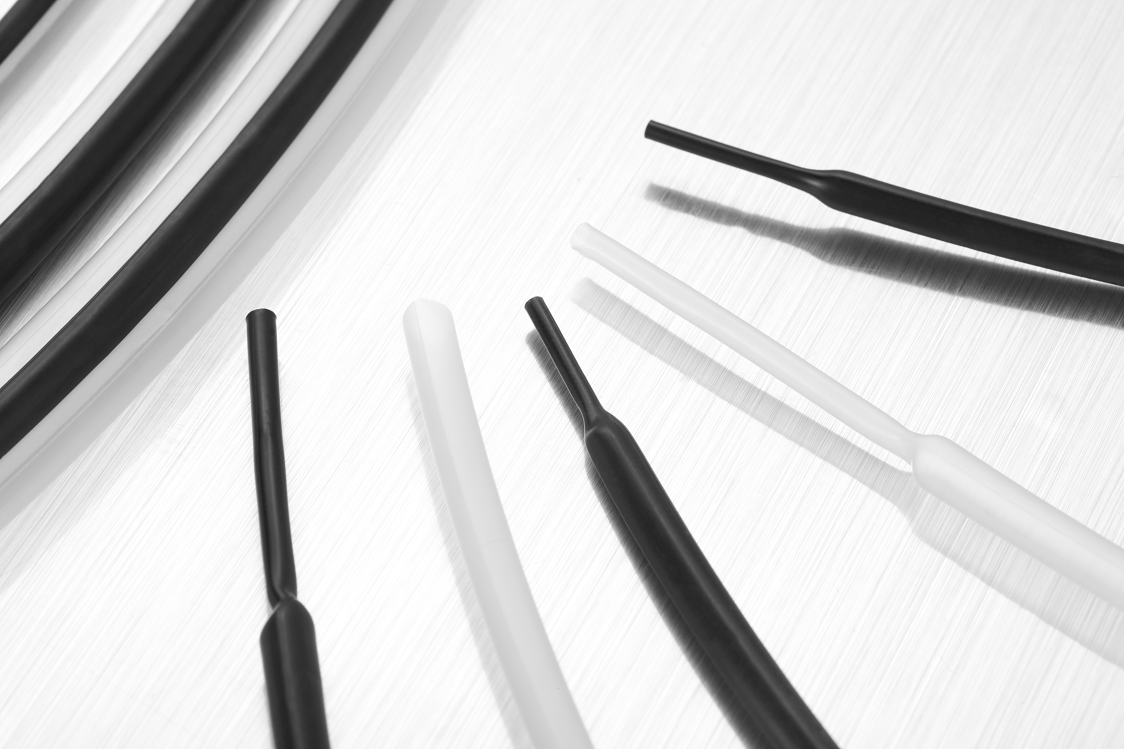

GT125 was made from Crosslinked Polyolefin. Attractive covering for both industrial and customer goods applications. Commercial grade tubing, Provides both insulation and protection of components and wires while also providing a smooth, glossy finish with various colors as well as clear.
Features and application:
| Operating temp.: -55 ℃ to 125 ℃ | Voltage rating: 600V |
| UV resistant: (black) | Flammable |
| Very Flexible | Shrink ratio 2:1 |
| Min. full recovery temp.: 125 ℃ |
RoHS & REACH compliane |
Typical technical performances
|
Property |
Test method |
Typical data |
|
Tensile strength |
ASTM D 2671 |
12.6Mpa Min. |
|
Elongation at break |
ASTM D 2671 |
300% Min. |
|
Tensile strength after ageing |
158℃ 168hours |
9.8Mpa Min. |
|
Elongation at break after ageing |
158℃ 168hours |
300% Min. |
|
Voltage withstand |
ASTM D 2671/AC 2500V, 1min |
Pass |
|
Dieslectric strenght |
ASTM D 150 |
20kV/mm |
|
Volume resistance |
ASTM D 2671 |
1.2X1014.Ω·cm Min. |
|
Flammability |
ASTM D 2671 |
Self-extinguish |
|
Copper stability |
UL224 |
Pass |
|
Copper corrosion |
UL224 |
No corrosion |
Dimensions:
D* = Inner diameter as supplied
d* = Inner diameter after fully recovered
w=wall thickness after recovered
|
Prolink Part. No |
D/mm Min. |
d/mm Max. |
W/mm |
wire/cable diameter mm |
|
GT125 0.8/0.4 |
0.8 |
0.4 |
0.32 |
0.5-0.7 |
|
GT125 1.2/0.6 |
1.2 |
0.6 |
0.32 |
0.7-1.1 |
|
GT125 2.4/1.2 |
2.4 |
1.2 |
0.44 |
1.4-2.2 |
|
GT125 3.2/1.6 |
3.2 |
1.6 |
0.44 |
1.9-2.9 |
|
GT125 4.8/2.4 |
4.8 |
2.4 |
0.51 |
2.9-4.3 |
|
GT125 6.4/3.2 |
6.4 |
3.2 |
0.56 |
3.8-5.8 |
|
GT125 9.5/4.8 |
9.5 |
4.8 |
0.56 |
5.7-8.5 |
|
GT125 12.7/6.4 |
12.7 |
6.4 |
0.65 |
7.7-11.5 |
|
GT125 16.0/8.0 |
16.0 |
8.0 |
0.69 |
9.8-14.2 |
|
GT125 19.1/9.5 |
19.1 |
9.5 |
0.80 |
11.4-17.0 |
|
GT125 25.4/12.7 |
25.4 |
12.7 |
0.90 |
15.2-230 |
|
GT125 38.1/19.1 |
38.1 |
19.1 |
1.02 |
23.0-34.0 |
|
GT125 50.8/25.4 |
50.8 |
25.4 |
1.10 |
31.0-45.0 |
|
GT125 76.2/38.1 |
76.2 |
38.1 |
1.17 |
46.0-68.0 |
|
GT125 100/50 |
100.0 |
50.0 |
1.20 |
61.0-91.0 |
|
GT125 120/60 |
120.0 |
60.0 |
1.30 |
73.0-108.0 |
|
GT125 150/75 |
150.0 |
75.0 |
1.30 |
90.0-135.0 |
|
GT125 180/90 |
180.0 |
90.0 |
1.30 |
110.0-160.0 |
|
Special specification are available upon request. |
||||
