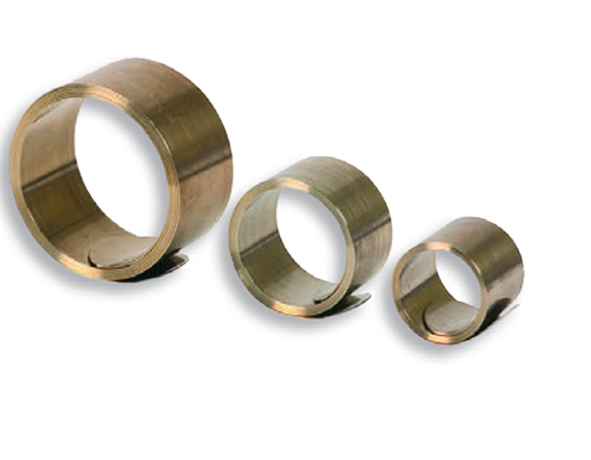

PEA-CFS

Non-Magnetic, Constant Force Spring equal to Raychem's EPPA-034 series

PEA-CFS made from fatigue resistant stainless steel which had been heat-treated and coiled.
Used for solderless shield and armour connections, Securing grade brades when splicing and terminating power cable.

Features:

Easily applied by rolling onto the sheath connections

Exert a constant pressure where upon

Nonmagnetic

Dimensions:

Prolink Part No.	Application range/mm		Dimensions/mm
	Min.	Max.	Inner dia./D	Width/W	Thickness	Length
PEA-CFS-A	12	20	10	13	0.15	280
PEA-CFS-K	12	20	10	13	0.15	400
PEA-CFS-B	17	28	14	13	0.18	400
PEA-CFS-C	25	40	20	13	0.20	570
PEA-CFS-D	36	60	30	13	0.26	850
PEA-CFS-E	17	29	14	25	0.20	570
PEA-CFS-F	30	39	22	25	0.30	700
PEA-CFS-G	40	60	30	25	0.35	950
PEA-CFS-H	50	75	38	30	0.40	1100
PEA-CFS-I	50	75	38	30	0.40	1350
PEA-CFS-L	57	85	45	30	0.40	1350
PEA-CFS-M	23	45	25	25	0.33	800
PEA-CFS-N	25	34	25	20	0.25	650
PEA-CFS-O	85	110	70	30	0.40	1500
PEA-CFS-U	110	135	70	30	0.65	1700
