CTS

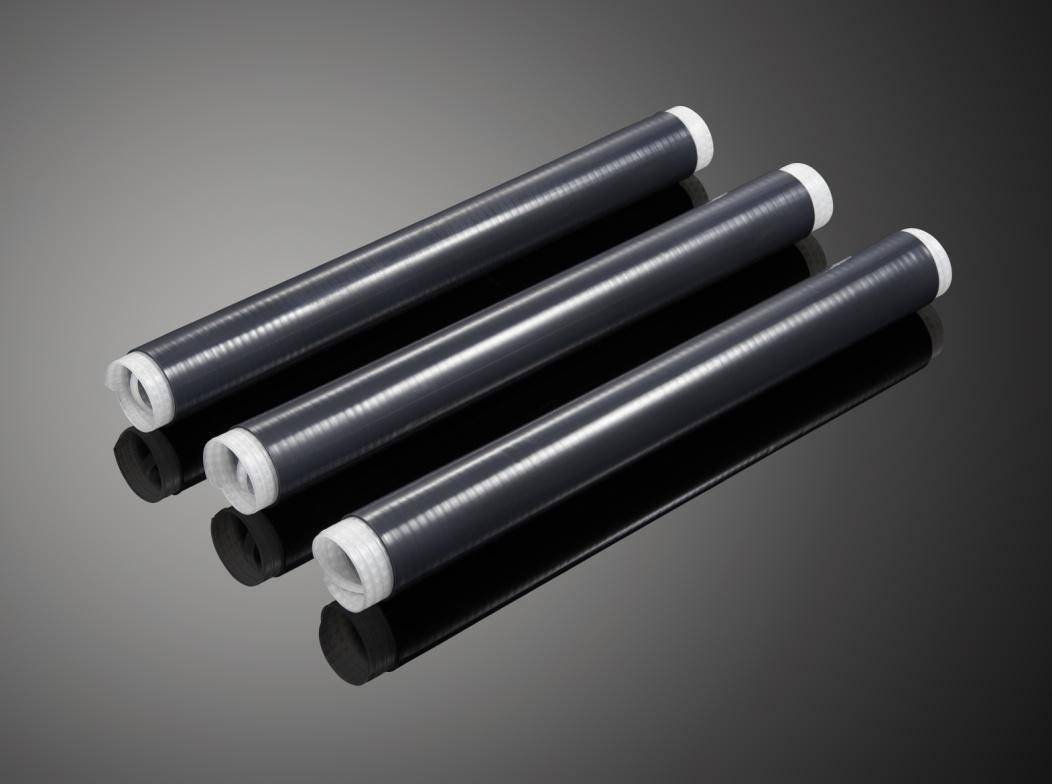

Silicon Rubber Cold Shrink Tube
CTS is open-ended, tubular silicon rubber tube, which is expanded with removable cores. The core is removed after the tube has been positioned over an in line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal.
Typical application is primary electrical insulation for all wire and cable splicing rated to 1 kV. Good for insulation, repairs and environmental sealing where space is limited and open fire can not be used..
CTS is open-ended, tubular silicon rubber tube, which is expanded with removable cores. The core is removed after the tube has been positioned over an in line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal.
Typical application is primary electrical insulation for all wire and cable splicing rated to 1 kV. Good for insulation, repairs and environmental sealing where space is limited and open fire can not be used..
Features and Application:
- Quick and easy installation
- No torches or heat required
- Excellent resistance to ozone and ultra-violet radiation
- Good solvent resistance: Compatible with industry-approved cable cleaners
- Excellent thermal stability
- High dry and wet insulation resistance
- Highly flexible; accommodates power cable supplier bend radius recommendations
Available Color: Gray, Dark Blue
Shelf life:
One and half years shelf life from the date of manufacture when stored in a humidity controlled storage (50F/10℃ to 80F/27℃ and <75% relative humidity)
Technical Date:
| Property | Typical Value | Reference |
| Operating temperature | -60℃~200℃ | N/A |
| Hardness | 37 | Shore A |
| Tear Strength | 40KN/M | ASTM D 638 |
| Tensile Strength | 8.7 MPa | ASTM D 638 |
| Ultimate Elongation | 680% | ASTM D 638 |
| Permanent Set | ≦10% | |
| Dielectric Strength | 25kV/mm | |
| dielectric dissipation factor | ≦0.005 | |
| dielectric constant | 3 | |
| Volume resistance | 1016Ω·CM |
Dimensions:
| Prolink Part NO. | Dimensions (mm) | ||
| As Supplied. (Min.) | After Recovered (Max.) | Standard Length/mm | |
| CTS 13/5.5 | 13 | 5.5 | 400 |
| CTS 18/8 | 18 | 8 | 400 |
| CTS 25/11 | 25 | 11 | 400 |
| CTS 32/14.5 | 32 | 14.5 | 400 |
| CTS 38/18 | 38 | 18 | 400 |
| CTS 45/22 | 45 | 22 | 400 |
| CTS 50/25 | 50 | 25 | 400 |
| CTS 55/29 | 55 | 29 | 400 |
| CTS 60/32 | 60 | 32 | 400 |
| CTS 65/35 | 65 | 35 | 400 |
| CTS 70/35 | 70 | 35 | 400 |
| CTS 80/38 | 80 | 38 | 400 |
| CTS 85/40 | 85 | 40 | 400 |
| CTS 90/42 | 90 | 42 | 400 |
| CTS 100/46 | 100 | 46 | 400 |
| CTS 120/50 | 120 | 50 | 400 |
| CTS 130/55 | 130 | 55 | 400 |
| CTS 155/65 | 155 | 65 | 400 |
*Other lengths are available on request
